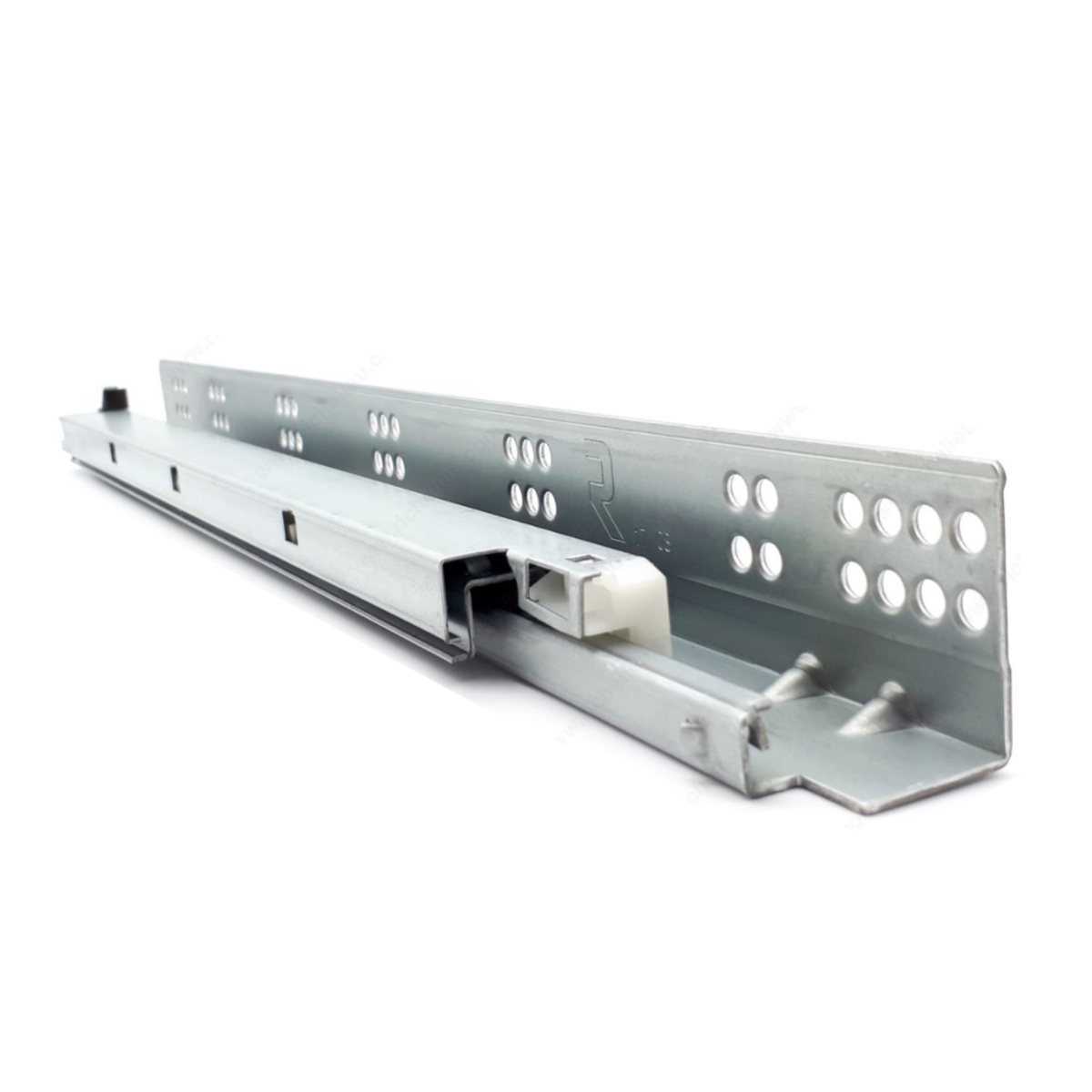

21″ Richelieu® 815 Drawer Slide, Under Mount, Soft Close, Non-Over Travel, 80 lb, Zinc

SKU: 13891
-
+

Description

21″ Richelieu® 815 Drawer Slide, Under Mount, Soft Close, Non-Over Travel, 80 lb, Zinc

A favorite of cabinet makers who are looking for a concealed slide without sacrificing functionality and performance.  Soft-close technology, height drawer front adjustment, plus a 80 lb (35 kg) load capacity make the 815 series a perfect option for cabinet makers everywhere.

The right choice in a medium-duty slide, the 815 series delivers an ultra-smooth slide operation and soft-close dampening effect.  The 2-way tool-free locking device (sold separately) ensures enhanced comfort and movement without annoying sounds or resistance.



Features:

  • Outstanding design and quality
  • Telescopic movement
  • Comprehensive line-up for a wide range of drawer sizes
  • 80 lb (35 kg) load capacity
  • 2-way tool-free height adjustment
  • Suitable for wood drawers only
  • Elegantly concealed underneath the drawer bottom
  • Large width provides superior stability between cabinet and drawer
  • Automatic soft-closing mechanism allows a progressive and silent closure of the drawer
  • Easy opening with a low pull-out force requirement
  • Full extension slide allows a complete access to drawer content
  • For face frame cabinet applications

Note:

  • These slides can be used with a locking mechanism and a rear mounting bracket (sold separately).
  • Set includes 1 left and 1 right handed slide.

Specifications

Weight N/A
Dimensions N/A
mounting-style

Under Mount

length

21"

closed-length

20.9843"

open-length

41.9685"

travel

20.9843"

extension

Full Extension

load-rating

80 lb

material

Steel

finish

Zinc Clear

manufacturer

Richelieu®

series

815

quantity

Set, Case
