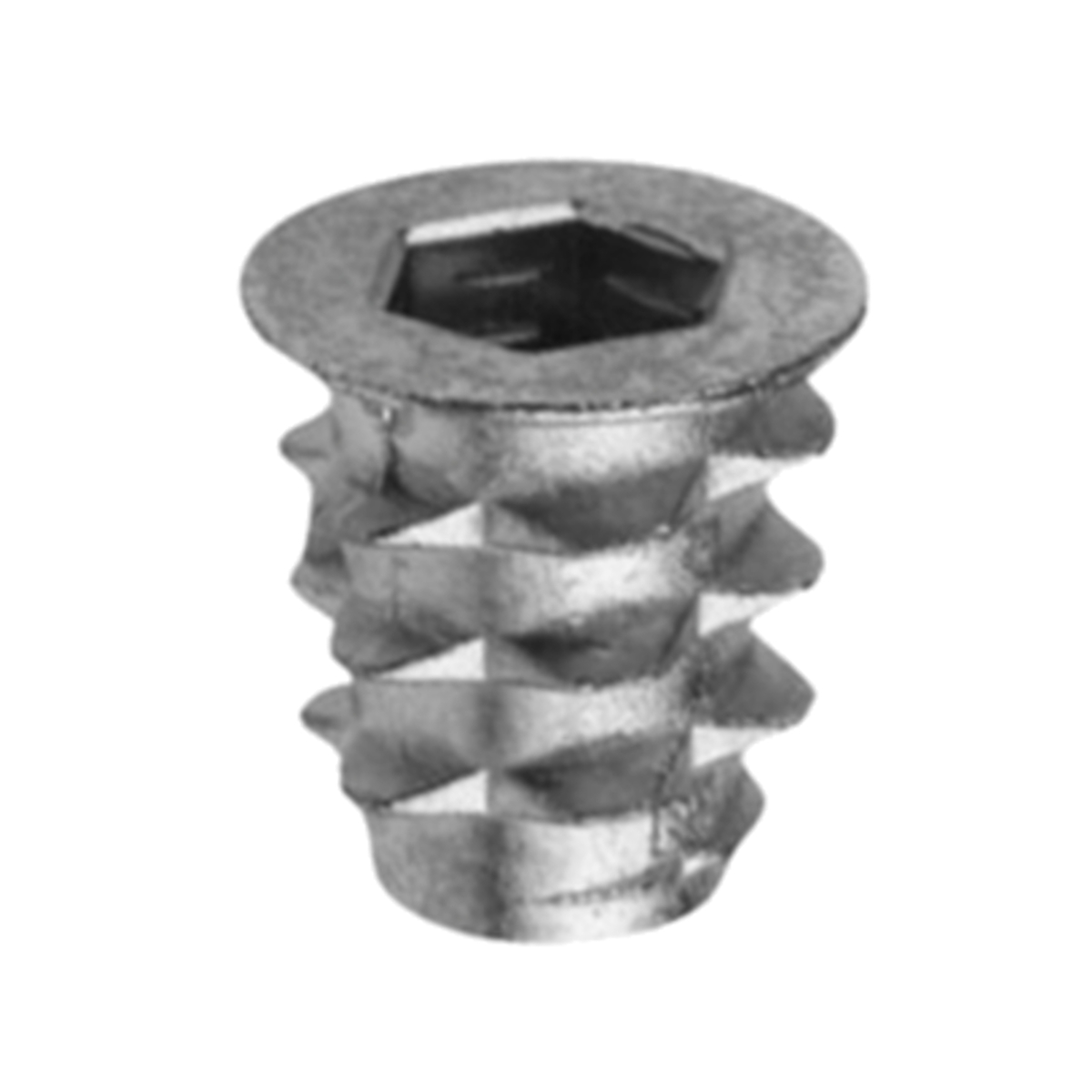

5/16″-18 X 25mm Insert Nut, Screw In, Flange, Type D, Die Cast, Zinc
Description
5/16″-18 X 25mm Insert Nut, Screw In, Flange, Type D, Die Cast, Zinc
- For soft wood

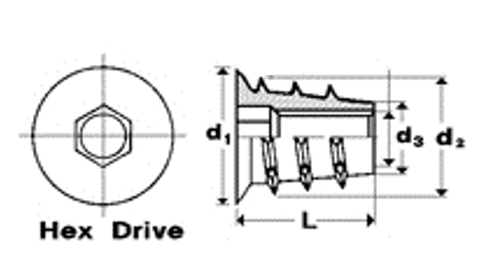

Specifications
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| style | Screw-In |
| diameter-thread-size | 5/16"-18 |
| length | 25mm |
| drive | Hex |
| drive-size | 8mm |
| outer-diameter-1 | 0.571" |
| outer-diameter-2 | 0.543" |
| outer-diameter-3 | 0.374" |
| material | Zinc Die Cast |
| finish | Zinc Clear |
| drill-size | 25/64" – 7/16" |
| quantity | Pack, Case |
