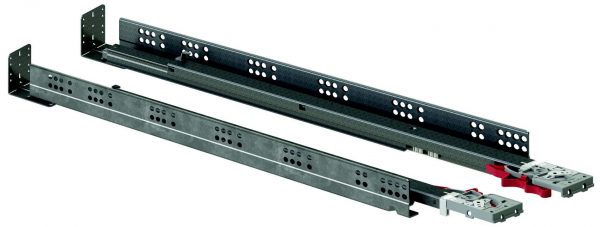

12″ FULTERER® FR3001 Drawer Slide, Under Mount, ECD Soft Close, Non-Over Travel, 75 lb, Galvanized
SKU: 13038
Description
12″ FULTERER® FR3001 Drawer Slide, Under Mount, ECD Soft Close, Non-Over Travel, 75 lb, Galvanized
Specifications:
- Concealed under mount slide with great running qualities
- Designed for use with Face Frame constructed cabinets
- Very smooth soft close device to prevent slamming
- See FR3002 for Euro frame-less cabinet application
- Designed for four sided drawers, notching not required
- 16mm thick drawer walls
Materials:
- Galvanized steel
Features:
- Steel ball bearings
Note:
- Includes rear mounting brackets and drawer locking device
Specifications
Weight | N/A |
---|---|
Dimensions | N/A |
mounting-style | Under Mount |
length | 12" |
closed-length | 12.48" |
open-length | 23.9" |
travel | 11.42" |
extension | Full Extension |
load-rating | 75 lb |
material | Steel |
finish | Galvanized |
manufacturer | Fulterer® |
series | FR 3001 |
quantity | Set, Case |
