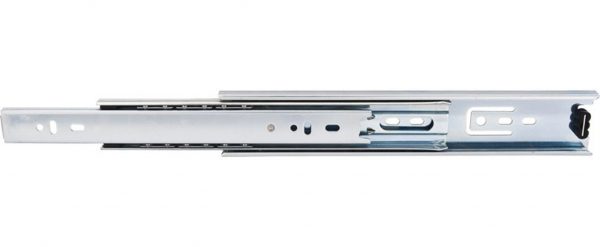

20″ VITUS® 303FU Ball Bearing Drawer Slide, Side Mount, Non-Over Travel, 100 lb, Zinc
Description
20″ VITUS® 303FU Ball Bearing Drawer Slide, Side Mount, Non-Over Travel, 100 lb, Zinc
Specifications:
- Grade 1 ANSI/BHMA certified
- Lubricated steel ball bearings with cage hold forward – retains cage during drawer member installation
- Non-handed trigger disconnect released
- Synthetic rubber hold-in detent prevents bounce-back and roll out
- Screw mounting system 32mm compatible
- Easy access window to reach hole on cabinet member in closed position
Materials:
- 1.0 mm x 1.0 x 1.2 mm cold rolled steel material
Specifications
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| mounting-style | Side Mount |
| length | 20" |
| closed-length | 19.69" |
| open-length | 39.38" |
| travel | 19.69" |
| extension | Full Extension |
| height | 1.77" |
| spacing | 0.5" |
| load-rating | 100 lb |
| application-type | Medium Duty |
| material | Steel |
| finish | Zinc Clear |
| brand | Vitus® |
| series | 303FU |
| quantity | Set |
