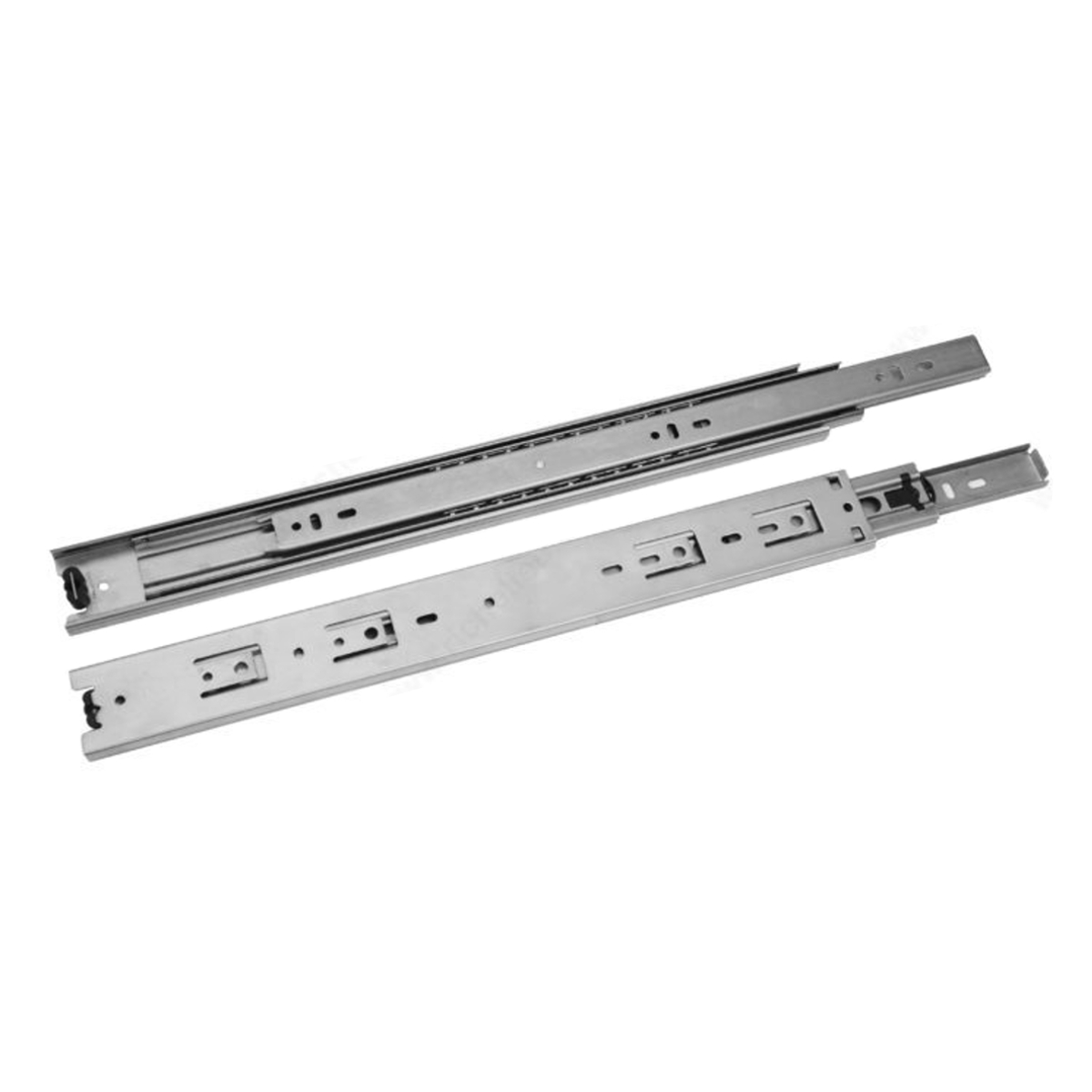

18″ ONWARD® 4501 Ball Bearing Drawer Slide, Side Mount, Over Travel, 100 lb, Zinc
Description
18″ ONWARD® 4501 Ball Bearing Drawer Slide, Side Mount, Over Travel, 100 lb, Zinc
Specifications:
- The 4501 series overtravel slides give you full access to the interior of the drawer. With their 100 lb load capacity and smooth movement, these ball bearing slides are perfect for your projects.
Specifications
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| mounting-style | Side Mount |
| length | 18" |
| closed-length | 17.72" |
| open-length | 36.06" |
| travel | 18.35" |
| extension | Full Extension |
| height | 1.78" |
| spacing | 0.5" |
| load-rating | 100 lb |
| application-type | Medium Duty |
| material | Steel |
| finish | Zinc Clear |
| manufacturer | Richelieu® |
| brand | Onward |
| series | 4501 |
| quantity | Set, Case |
